Windows Deployment Services (WDS)
Introduction
Deploying operating systems it’s always a hard thing to do. Annoying, uncomfortable, but necessary for every environment. Why? Because every desktop computer on every organization has their own life cycle (even servers, a longer one, but cycle at last).
Even if your organization doesn’t have many desktops and even if those desktops don’t seem to need an image refresh in several months; the dynamics of today’s technology makes your base operating systems to change: Updates available, service packs, a new version of your organization’s software, newer operating systems, etc. And don’t forget the consequences of any user’s intervention: overloading the hard drive, personal software installation, etc; transforming always into a need to a fresh new installation. No need to keep enumerating things that normally happens; you probably know all of them.
Common Base Image Life Cycle
The bottom line is that a good and automated system to deploy your full operating systems images will significantly (and I do mean significantly) improve your daily tasks: Making an awkward job of following the installations steps for maybe 2 or 3 hours and transforming it to 30mins of a complete unattended provisioning. Here’s where Windows Deployment Services comes to play.
First of all I want to thank a friend of mine, Leonardo, who made a great “How To”, in Spanish, for WDS with Windows Server 2003 SP1, here’s the link to see it. Also you can find the Microsoft document “Deploying and Managing the Windows Deployment Services Update on Windows Server 2003”.
Requirements
- Windows Server 2008 or Windows Server 2003 SP2 * for the WDS server .
- Active Directory and DNS up and working.
- DHCP server available and authorized by Active Directory on your network. Linux DHCP servers do not need to be authorized by AD.
- On the client side: NICs PXE compliant.
Almost all of Network Adapter that are available for several years now are in fact PXE compliant, so I think you don’t have to worry about that.
(Optional) And if we want to create our own unattended files:
- Windows Automated Installation Kit (WAIK).
We will use of this kit the Windows System Image Manager to create our Unattended Files for installation. Here’s the link to download the DVD image for installation.
Hardware Requirements
- Processor: No special specs on processor characteristics, but of course to WDS work properly you will need a Pentium III 800 MHz or higher.
- Memory: 256mb minimum.
- HD: Recommended 30 GB of free space on the disk that will be used for images storing.
It always depends on the images amount of images you will use to deploy. For example, I have over 5 full Vista images (meaning operating system, Office 2007 and several other applications) and less than 10 GB of disk space used.
Installation
To install WDS on a Windows Server 2003 SP2 you only need to add the component from “Add or Remove Programs”
To install it on Windows Server 2008 it is practically the same procedure, just add the Windows Deployment Services role from the “Add Role Wizard“. After that, all the configurations tasks are the same, since it is the same snap-in; and you’ll get bonus options using WDS on W2K8, like multicasting transmissions. I’ll comment this on the next posts.
* To install Windows Deployment Services on Windows Server 2003 SP1 first you must install the “Remote Installation Service” (RIS) component, you will not need to configure anything special with this component. After that, you have to use WAIK media: in the options you will find the Windows Deployment Services for installation.
Configuration
Once installed, access the “Windows Deployment Services” snap-in.
On the console, to get started right-click on the listed server and select “Configure Server”.
Here are the considerations you need to have to configure your server properly.
Configuring the Server
- After you selected the folder where you are going to store all the images for WDS, you need to check on the DHCP settings. The wizard will explain you about this option.
Since in my example I have a Microsoft-DHCP Server working on a different server from the WDS, these two options will remain unchecked. If you have both, WDS and DHCP, on the same server you should check both options.
- Response Configurations: This is where you set to which clients you will respond when you receive a PXE request.
The difference between known clients and unknown is set on if the Computer Object exists on Active Directory.
If you want to create the computer objects before running WDS on that computer, you should have the GUID of that computer and include that information on the computer object. When you create the object on Active Directory, using “Active Directory Users and Computers” you need to set that “This is a managed computer” and insert the GUID.
Selecting this option can be really annoying if you want to improve your deployment, because you have to add the object first on Active Directory every time that you want to deploy an image, but it’s of course the more secure option to apply.
Or you can use the option “For unknown clients, notify administrator and respond after approval”. With this option, all the unknown clients that request to boot from PXE will appear to you in“Pending Devices” on your console, from there you can approve or decline them.
Or simply use the option “Respond to all (unknown and known) computer clients” and when you don’t need WDS, you can just stop the service to avoid any rogue clients.
On the final step of the wizard, select to start adding images now are we are ready to go!
Adding Boot Images
Before creating a complete image to be deployed with WDS, we need to add first a Windows Pre-Installation image (WindowsPE). With this image we provide the server with a pre installation environment needed for all installations. WindowsPE comes, as all the new operating systems, in a WIM format, included in the Vista or Windows 2008 installation media.
1 - To add the image, expand the server options on the console and on the “Boot Images” select “Add Boot Image”. Remember that this WindowsPE that we are adding will be the same for all the operating systems that we are going to use with WDS.
2 - Select “Browse” and check on the Vista or Windows 2008 installation media for the folder “Sources” and the file “boot.wim”. This is our WindowsPE.
3 - Select the name for this image and click on “Next”

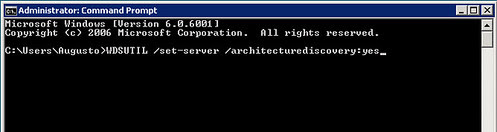

Note: You can also use, of course, the x64 WindowsPE. Will be discussing it later.
4 - Review the summary and click on “Next”.
And now the Windows Pre-Installation Environment is available to boot from your network.
A clean Vista installation?
The procedure to add a clean Vista installation to WDS it’s pretty simple and practically the same procedure as for the boot image. As a good practice you should always have a clean Vista installation available on your server, here are some reasons:
1 – On the WDS console, right click on “Install Images” and select “Add Image Group”
2 – Select the name that you are going to use for this group. For Example: VistaInstallation.
3 – Right click on “Install Images” again and select “Add Install Image”. When the wizard starts select to use the group you’ve just created and click “Next”.
4 – On the next window, browse the Vista media for the folder “Sources” and select the file “install.wim” and click “Next”
5 – Since the Vista installations always include all the versions on the same file, we should select only the one that apply for our case. In my case, Windows Vista Ultimate. Click “Next”
6 – On the summary window click “Next” and the image will start to upload to your server.
At this point we have all the necessary components to deploy a clean image for Vista from the network; but the installation remains attended. So, the disk configuration and the Vista options (language, product key, computer name, etc) still need to be manually inserted.
We’ll be reviewing in the next posts a complete unattended installation for Windows Vista and also making a personalize installation of the operating system
Tags: Image Deployment, Windows Deployment Services (WDS) Ok then, after completing the first configurations made on the Part I of this guide we can perform a clean but attended network installation of Windows Vista.
There are two main steps to take and complete a full image and unattended deployment:
1. Creating the base image to deploy: OS, programs and other special configurations + uploading it to the WDS server.
2. Making an unattended file to be used with that image.
The first step it’s pretty simple, it consists on installing the operating system with all the features, programs and configurations that you want. But there are some considerations first:
After you complete the image, there’s a process where you release all the specific data involving the computer where it’s installed, like the Security Identifier (SID), computer name, etc. Here are some of the things that the image won’t keep after the release process:
· Computer name· Owner and Company name· SID
· Domain or workgroup membership· TCP/IP Settings· Regional and keyboard settings· Specific hardware drivers. This refers to specific computer hardware, like video or audio drivers. But if you only applied drivers used on the Windows installation, the same will apply for the deployment, but any other external driver installed will be unavailable.
· Any saved network connections (wireless networks saved)
· OS product key. This is an important note, since no matter if your product has been activated; the key is reset after this process.
But here are some of the things that are kept after this release process:
· Programs and features installed (pretty obvious to say that at this moment right?)
· Local Users and Groups created.· Product Keys used for programs installed. Meaning if you have Microsoft Office installed, the key used will remain as the same on the deployments.
· Windows updates installed· User Profiles: Since all the profiles configuration are basically data stored on the Users folders, all that information will be uploaded within the image.
· Printers installed.
All the uploading process is made from the client side; but we must first prepare the WDS server to be ready to receive images.
First, we are going to add a boot image that will be specially to capture operating system images.
1. Go to WDS Console and let’s upload a second boot image; it can be the same that we added on the first post using the boot.wim from a Vista or Windows Server 2008 media.
2. Instead of naming it Windows PE, use a name like “Image Capture”.
3. After the process completes, right click on the image you just added and select “Create Capture Boot Image”
Now we have set our WDS server, let’s prepare the client using the sysprep tool and upload the image:
1. On the Vista or Windows 2008 client open a “cmd” as administrator and insert “cd c:windowssystem32sysprep”.
2. Run “sysprep /oobe /generalize /reboot”.
This process will require for a few second and after it completes the OS will automatically reboot.
3. Soon as the machine is rebooting, press F12 to select different devices to boot.
4. Select to boot from the network card connected to the LAN
Now the client is communicating with the DHCP server to require an IP and a boot image, the DHCP will forward the request to the WDS. You will be prompted to press F12 one more time.
5. Since we have two boot images, let’s select “Image Capture”
The boot image will start to load.
6. A image capture wizard will start, click on “Next”
7. Now let’s select the volume we want to capture, in our case C:. And put a name for the image that will be uploaded as long with a description.
It’s important to note that if the sysprep process did not completed properly no volume will be available to select.
8. On the next window you must select where the .wim file will be temporary stored locally. Select to keep it on the root C: (this file it’s not uploaded within the image).
9. Select the option “Load the image to a WDS server”; put the name of the server and click on “Connect”
10. You will be prompted with credentials, use a privileged account on the domain or local administrator account of the WDS server.
11. Now select the image group name where you want to store the new image and click on Finish.
Here the process of the image compression and preparation starts, this could take several minutes (~30 mins to ~1hr) depending on the image size and the hardware involved. After this process, the image is uploaded to the WDS server.
After it completes, check on the WDS console, the image should be uploaded and ready to be deployed.
Still we have not configured any unattended file, so the image can be deployed but the entire OS configuration should be entered manually, like on normal OS installation but all the programs will be installed.
For the unattended files preparation and configuration take a look to the third post of WDS.
Installing and Configuring WDS (Windows Deployment Services): Full Images Deployment (Part I)
Installing and Configuring WDS (Windows Deployment Services): Full Images Deployment (Part III)
Cheers!
Full Images Deployment (Part I)
I’ve prepared a complete guide to configure a WDS Server on Windows Server 2008 or Windows Server 2003 to deploy complete operating systems images, this is the first part. In this post I’ll be setting the WDS requirements, installation, first configurations and images needed.Introduction
Deploying operating systems it’s always a hard thing to do. Annoying, uncomfortable, but necessary for every environment. Why? Because every desktop computer on every organization has their own life cycle (even servers, a longer one, but cycle at last).
Even if your organization doesn’t have many desktops and even if those desktops don’t seem to need an image refresh in several months; the dynamics of today’s technology makes your base operating systems to change: Updates available, service packs, a new version of your organization’s software, newer operating systems, etc. And don’t forget the consequences of any user’s intervention: overloading the hard drive, personal software installation, etc; transforming always into a need to a fresh new installation. No need to keep enumerating things that normally happens; you probably know all of them.
Common Base Image Life Cycle
The bottom line is that a good and automated system to deploy your full operating systems images will significantly (and I do mean significantly) improve your daily tasks: Making an awkward job of following the installations steps for maybe 2 or 3 hours and transforming it to 30mins of a complete unattended provisioning. Here’s where Windows Deployment Services comes to play.
First of all I want to thank a friend of mine, Leonardo, who made a great “How To”, in Spanish, for WDS with Windows Server 2003 SP1, here’s the link to see it. Also you can find the Microsoft document “Deploying and Managing the Windows Deployment Services Update on Windows Server 2003”.
Requirements
- Windows Server 2008 or Windows Server 2003 SP2 * for the WDS server .
- Active Directory and DNS up and working.
- DHCP server available and authorized by Active Directory on your network. Linux DHCP servers do not need to be authorized by AD.
- On the client side: NICs PXE compliant.
Almost all of Network Adapter that are available for several years now are in fact PXE compliant, so I think you don’t have to worry about that.
(Optional) And if we want to create our own unattended files:
- Windows Automated Installation Kit (WAIK).
We will use of this kit the Windows System Image Manager to create our Unattended Files for installation. Here’s the link to download the DVD image for installation.
Hardware Requirements
- Processor: No special specs on processor characteristics, but of course to WDS work properly you will need a Pentium III 800 MHz or higher.
- Memory: 256mb minimum.
- HD: Recommended 30 GB of free space on the disk that will be used for images storing.
It always depends on the images amount of images you will use to deploy. For example, I have over 5 full Vista images (meaning operating system, Office 2007 and several other applications) and less than 10 GB of disk space used.
Installation
To install WDS on a Windows Server 2003 SP2 you only need to add the component from “Add or Remove Programs”
To install it on Windows Server 2008 it is practically the same procedure, just add the Windows Deployment Services role from the “Add Role Wizard“. After that, all the configurations tasks are the same, since it is the same snap-in; and you’ll get bonus options using WDS on W2K8, like multicasting transmissions. I’ll comment this on the next posts.
* To install Windows Deployment Services on Windows Server 2003 SP1 first you must install the “Remote Installation Service” (RIS) component, you will not need to configure anything special with this component. After that, you have to use WAIK media: in the options you will find the Windows Deployment Services for installation.
Configuration
Once installed, access the “Windows Deployment Services” snap-in.
On the console, to get started right-click on the listed server and select “Configure Server”.
Here are the considerations you need to have to configure your server properly.
Configuring the Server
- After you selected the folder where you are going to store all the images for WDS, you need to check on the DHCP settings. The wizard will explain you about this option.
Since in my example I have a Microsoft-DHCP Server working on a different server from the WDS, these two options will remain unchecked. If you have both, WDS and DHCP, on the same server you should check both options.
- Response Configurations: This is where you set to which clients you will respond when you receive a PXE request.
The difference between known clients and unknown is set on if the Computer Object exists on Active Directory.
If you want to create the computer objects before running WDS on that computer, you should have the GUID of that computer and include that information on the computer object. When you create the object on Active Directory, using “Active Directory Users and Computers” you need to set that “This is a managed computer” and insert the GUID.
Selecting this option can be really annoying if you want to improve your deployment, because you have to add the object first on Active Directory every time that you want to deploy an image, but it’s of course the more secure option to apply.
Or you can use the option “For unknown clients, notify administrator and respond after approval”. With this option, all the unknown clients that request to boot from PXE will appear to you in“Pending Devices” on your console, from there you can approve or decline them.
Or simply use the option “Respond to all (unknown and known) computer clients” and when you don’t need WDS, you can just stop the service to avoid any rogue clients.
On the final step of the wizard, select to start adding images now are we are ready to go!
Adding Boot Images
Before creating a complete image to be deployed with WDS, we need to add first a Windows Pre-Installation image (WindowsPE). With this image we provide the server with a pre installation environment needed for all installations. WindowsPE comes, as all the new operating systems, in a WIM format, included in the Vista or Windows 2008 installation media.
1 - To add the image, expand the server options on the console and on the “Boot Images” select “Add Boot Image”. Remember that this WindowsPE that we are adding will be the same for all the operating systems that we are going to use with WDS.
2 - Select “Browse” and check on the Vista or Windows 2008 installation media for the folder “Sources” and the file “boot.wim”. This is our WindowsPE.
3 - Select the name for this image and click on “Next”
Note: You can also use, of course, the x64 WindowsPE. Will be discussing it later.
4 - Review the summary and click on “Next”.
And now the Windows Pre-Installation Environment is available to boot from your network.
A clean Vista installation?
The procedure to add a clean Vista installation to WDS it’s pretty simple and practically the same procedure as for the boot image. As a good practice you should always have a clean Vista installation available on your server, here are some reasons:
1 – The unattended files that you may use on full images deployment also apply to clean installations.Here are the steps (again, you have to use the Vista installation media):
2 – WDS use a smart storage method, which does not duplicate any installation files. Meaning that if you save a clean installation of Vista and you add later a full Vista image with several applications included, all the new information that is stored are the differential (delta) files between those two.
3 – Rearm activations: If you use the command line “slmgr –rearm” on the Vista installations to reset back your grace period back to 30 days, you should know that Vista only allows 3 times to run this command. But when you deploy a full image, the times that you can run this command line reduces according to the time when the image was created. But using the clean WIM file extracted from the Vista media, does not have that drawback when you run the rearm command.
4 – Having a clean installation always available that you can deploy any time will help you when you need to make changes to the default installation image or when you need to start a new one from the scratch.
1 – On the WDS console, right click on “Install Images” and select “Add Image Group”
2 – Select the name that you are going to use for this group. For Example: VistaInstallation.
3 – Right click on “Install Images” again and select “Add Install Image”. When the wizard starts select to use the group you’ve just created and click “Next”.
4 – On the next window, browse the Vista media for the folder “Sources” and select the file “install.wim” and click “Next”
5 – Since the Vista installations always include all the versions on the same file, we should select only the one that apply for our case. In my case, Windows Vista Ultimate. Click “Next”
6 – On the summary window click “Next” and the image will start to upload to your server.
At this point we have all the necessary components to deploy a clean image for Vista from the network; but the installation remains attended. So, the disk configuration and the Vista options (language, product key, computer name, etc) still need to be manually inserted.
We’ll be reviewing in the next posts a complete unattended installation for Windows Vista and also making a personalize installation of the operating system
Full Images Deployment (Part II)
December 12, 2008 at 6:46 pm | Posted in Windows Deployment Services (WDS) | 21 CommentsTags: Image Deployment, Windows Deployment Services (WDS) Ok then, after completing the first configurations made on the Part I of this guide we can perform a clean but attended network installation of Windows Vista.
There are two main steps to take and complete a full image and unattended deployment:
1. Creating the base image to deploy: OS, programs and other special configurations + uploading it to the WDS server.
2. Making an unattended file to be used with that image.
Creating the Base Image
Note: On this series of posts we are only considering to deploy Windows Vista or Windows Server 2008 images. The files used on WDS Native mode as unattended files are only valid to those operating systems, if you want to make unattended deployment with Windows XP or 2003 OS; you will need to use RIS or WDS Legacy Mode.The first step it’s pretty simple, it consists on installing the operating system with all the features, programs and configurations that you want. But there are some considerations first:
After you complete the image, there’s a process where you release all the specific data involving the computer where it’s installed, like the Security Identifier (SID), computer name, etc. Here are some of the things that the image won’t keep after the release process:
· Computer name· Owner and Company name· SID
· Domain or workgroup membership· TCP/IP Settings· Regional and keyboard settings· Specific hardware drivers. This refers to specific computer hardware, like video or audio drivers. But if you only applied drivers used on the Windows installation, the same will apply for the deployment, but any other external driver installed will be unavailable.
· Any saved network connections (wireless networks saved)
· OS product key. This is an important note, since no matter if your product has been activated; the key is reset after this process.
But here are some of the things that are kept after this release process:
· Programs and features installed (pretty obvious to say that at this moment right?)
· Local Users and Groups created.· Product Keys used for programs installed. Meaning if you have Microsoft Office installed, the key used will remain as the same on the deployments.
· Windows updates installed· User Profiles: Since all the profiles configuration are basically data stored on the Users folders, all that information will be uploaded within the image.
· Printers installed.
All the uploading process is made from the client side; but we must first prepare the WDS server to be ready to receive images.
First, we are going to add a boot image that will be specially to capture operating system images.
1. Go to WDS Console and let’s upload a second boot image; it can be the same that we added on the first post using the boot.wim from a Vista or Windows Server 2008 media.
2. Instead of naming it Windows PE, use a name like “Image Capture”.
3. After the process completes, right click on the image you just added and select “Create Capture Boot Image”
Now we have set our WDS server, let’s prepare the client using the sysprep tool and upload the image:
1. On the Vista or Windows 2008 client open a “cmd” as administrator and insert “cd c:windowssystem32sysprep”.
2. Run “sysprep /oobe /generalize /reboot”.
This process will require for a few second and after it completes the OS will automatically reboot.
3. Soon as the machine is rebooting, press F12 to select different devices to boot.
4. Select to boot from the network card connected to the LAN
Now the client is communicating with the DHCP server to require an IP and a boot image, the DHCP will forward the request to the WDS. You will be prompted to press F12 one more time.
5. Since we have two boot images, let’s select “Image Capture”
The boot image will start to load.
6. A image capture wizard will start, click on “Next”
7. Now let’s select the volume we want to capture, in our case C:. And put a name for the image that will be uploaded as long with a description.
It’s important to note that if the sysprep process did not completed properly no volume will be available to select.
8. On the next window you must select where the .wim file will be temporary stored locally. Select to keep it on the root C: (this file it’s not uploaded within the image).
9. Select the option “Load the image to a WDS server”; put the name of the server and click on “Connect”
10. You will be prompted with credentials, use a privileged account on the domain or local administrator account of the WDS server.
11. Now select the image group name where you want to store the new image and click on Finish.
Here the process of the image compression and preparation starts, this could take several minutes (~30 mins to ~1hr) depending on the image size and the hardware involved. After this process, the image is uploaded to the WDS server.
After it completes, check on the WDS console, the image should be uploaded and ready to be deployed.
Still we have not configured any unattended file, so the image can be deployed but the entire OS configuration should be entered manually, like on normal OS installation but all the programs will be installed.
For the unattended files preparation and configuration take a look to the third post of WDS.
Installing and Configuring WDS (Windows Deployment Services): Full Images Deployment (Part I)
Installing and Configuring WDS (Windows Deployment Services): Full Images Deployment (Part III)
Cheers!
Tidak ada komentar:
Posting Komentar
